Harley Sportster Cafe Racer Guide: Donors, Controls And Tail Fitment
The references listed below support the regulatory, safety, and manufacturer statements in this guide. Any dollar figure is an editorial planning estimate based on typical scope, not a quote and not taken from those references, unless a current official price is explicitly cited at that point in the text. Confirm fitment, safety, legality, availability, and current pricing for your exact vehicle before you buy or commission work.
A Sportster cafe racer needs the seat, handlebar and foot-control positions to work together. Lower bars and a tail cowl can change the appearance, but the finished motorcycle also needs usable controls, steering clearance and a coherent chassis setup.
This guide focuses on a cafe conversion using an older XL Sportster donor. It complements the broader Sportster modifications guide, which covers general upgrades. Supplier and builder sources were checked September 28, 2026; the projects here are documented examples, not motorcycles we have road-tested.
Choose A Cafe Layout Before Buying Parts

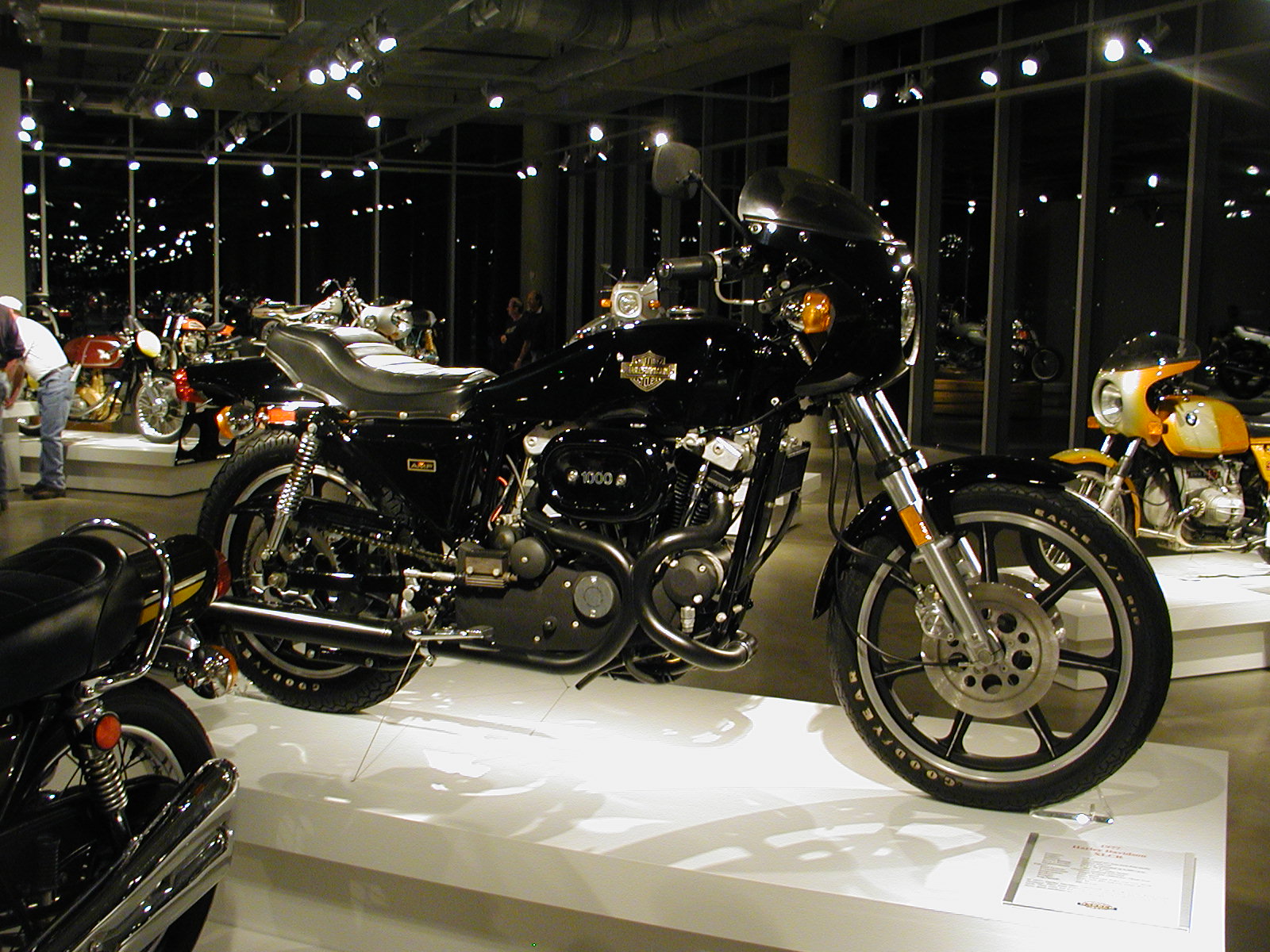

A 1977 Harley-Davidson XLCR at the Barber museum, photographed by Mike Schinkel. This historical factory cafe-racer reference is not an Evolution XL conversion or proof of aftermarket kit fitment.
1977 Harley Davidson XLCR 01 by Mike Schinkel · CC BY 2.0. Uncropped; no editorial edits.
Start with ride length, rider reach, passenger needs and the existing donor. Decide whether the project is a reversible cockpit and seat change or a conversion involving frame/tail alteration. Have a technician assess previous modifications before choosing the second route.
The Sportster name alone does not establish parts compatibility. Harley-Davidson identifies the newer Sportster S as a Revolution Max platform. An older XL tail or control kit should not be assumed to fit that motorcycle. Record the complete model designation and year in every supplier inquiry.
A Fitment Example: Burly's Cafe Tail Applications
| Application in Burly's published documentation | Planning implication |
|---|---|
| 1986–2003 XL cafe tail | Use the corresponding installation sheet and verify the exact part number |
| 2004–2006 and 2010–2015 XL, in the 2017 catalog | A separate product grouping; confirm current availability and application |
| 2007–2009 XL, in the 2017 catalog | The catalog identifies an ECM-support provision specific to this grouping |
| A year or model outside the listed application | Obtain current supplier confirmation; do not extend a historical year range |
The Burly 1986–2003 installation sheet identifies a solo tail requiring structural alteration in its recommended installation. It also excludes passengers and gear from the rear tail area. This is not a universally reversible seat swap. Have the current instructions reviewed by the installer before authorizing work.
The 2017 catalog is used here to illustrate application differences, not current stock or pricing. Recheck product revisions, wiring/ECM placement and mounting requirements with the supplier. Do not buy a used kit solely because its seller calls it “Sportster cafe.”
Controls And The Rider Triangle
Mock up seat position, bar reach and foot controls as a group. If the donor has forward controls, a low-bar cafe layout needs particular attention to body position. The installer should confirm lever travel, linkage alignment, cable routing and full steering lock before finish work.
Burly's Clubman Bar is listed from $177.95 when checked and carries a warning that shorter cables and brake lines may be needed. That price is for a component, not a completed cockpit conversion. Confirm the exact application and required accompanying parts in the quote.
Treat clip-ons and clubman bars as different design choices. Fork diameter, mounting space, instrument position, tank clearance and control housings all matter. A low position that looks convincing on a parked bike may not suit the rider or intended distance; check the mock-up before committing to paint or upholstery.
Two Documented Custom Approaches
Speedster: A Coordinated Cafe Project
Lord Drake Kustoms' Speedster documents a cafe conversion based on a 2007 Sportster 883 R, developed with a Porsche-inspired visual theme. Use the builder's project record to discuss how bodywork, controls and finish form one brief. Its show result is not an independent handling assessment or a current conversion-package offer.
Sportster 1200 Custom: A Cafe/Bobber Crossover
The same builder's 2007 Sportster 1200 Custom project combines a handmade sprung seat, changed rear bodywork and a wider rear tire. The record credits Metalcolors for black powder coating. It is a useful contrast: the customer's requirements produced a style crossover rather than a conventional cafe tail.
Both projects were documented by the builder in Spain. Their references to local homologation and delivery arrangements should not be treated as US registration guidance or an available US service package. Ask your own installer about the applicable road-use requirements and the actual scope it will accept.
Chassis And Donor Assessment
Have the motorcycle evaluated as it stands before buying a fork, wheel or shock package. Record tire and brake condition, steering bearings, leaks, charging, fuel-system operation and existing frame changes. Prioritize required repairs separately from optional upgrades.
Ask the shop to plan suspension travel, clearances and rider loading together. Replacing a front end or changing rear ride height is not just a cosmetic decision. The completed proposal should explain the compatible wheel, axle, brakes, controls and setup, and who checks the assembled motorcycle.
Price The Whole Conversion
| Work package | Include beyond the headline part |
|---|---|
| Tail and seat | Fitment, mounting/structural work, lighting, wiring and finish |
| Cockpit | Bars, cables, lines, control housings and instrument placement |
| Foot controls | Mounts, linkages, operation and rider fit |
| Chassis | Compatible suspension/brake parts, clearance and setup |
| Completion | Inspection, adjustment, documentation, transport and aftercare |
There is no sourced universal total for a Sportster cafe conversion in these examples. Use the cafe racer budget worksheet, then ask a Sportster-experienced builder to price your donor and scope. A listed brand or platform is a lead; ask for comparable cafe work before choosing a shop.
Prepare an editable brief with exact year/model, photos, preferred riding position, solo/passenger requirements, must-keep equipment and a budget ceiling. Identify every irreversible change and approve it only after reviewing the planned layout.
